566243142 Goodyear W01-358-9807 Firestone Air Bag spring 1R12-1047 AS9807 AS-8874

Name: 566243142 Goodyear W013589807 Firestone Air Bag spring 1R121047 AS9807 AS8874
Brand: VKNTECH
Price: 1.00 USD

Quality 566243142 Goodyear W01-358-9807 Firestone Air Bag spring 1R12-1047 AS9807 AS-8874 wholesale

Place of Origin : Guangdong, China

Brand Name : VKNTECH

Certification : IATF16949/ISO9000

Packaging Details : CARTON/PALLET

Supply Ability : 2000000pcs/Year

MOQ : 10 Pieces

Price : $1.00 - $50.00/Pieces

Model Number : 1K9807

OE NO. : 1K9807

Warranty : 12 Months

Type : by sea/by air/by truck

Car Model : For bus/truck&trailer

Service offered : OEM

Suspension system : Air Spring Suspension

Price condition : FOB China

Sample : Available

Type of Goods : Air Spring/Air bags/Air Ballon

Material : Imported Natrul Rubber

Operation : Gas-filled

Package : standard packing or customized

Brand : VKNTECH or customized

Payment term : T/T&L/C

Port : Guangzhou

Contact Now

W01-358-9807 Firestone/Air ride suspension system 566243142 Goodyear/air bag 1R12-1047 AS9807 AS-8874 Air spring

OEM Reference

Firestone	W01-358-9807	FLEETPRIDE	AS9807
	1T15M-2	AUTOMANN	1DK23I-9807
Goodyear	566243142	SAF HOLLAND	90557372
	1R12-1047		50857000
TRIANGLE	AS-8874
TRP	AS98070

Cross References: 90557306, W01-358-9807, W013589807, W01-358-8882, W013588882, 1R12-1047, 1R121047, S-25912, S25912, 90557372
A cross reference listing means that this air bag may be a suitable replacement for the part numbers listed. Please double check the dimensions and location of mounting holes and stud to be sure the air bag will work in your application.

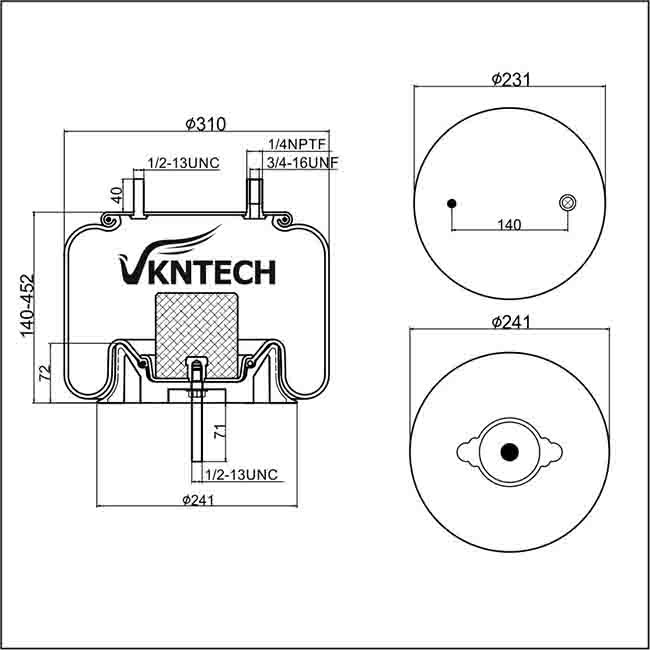

Product Drawing

566243142 Goodyear W01-358-9807 Firestone Air Bag spring 1R12-1047 AS9807 AS-8874

Specificions

Air Spring Air Fitting Size	Combination Stud/Air Inlet Stud Outside Thread is 3/4-16 ; Studs Inside Thread (Air Inlet) is 1/4 N.P.T.
Air Spring Compressed Height	4.7 in.
Air Spring # of Lobes	1 Solid Sleeve
Air Spring Type	1T - Reversible Sleeve
Bead Plate (Top) & Deflated Bellows O.D.	9 and 10.12 in.
Bead Plate (Top) Mounting Bolts Dimension Center to Center	5.5 in.
Diameter	10.12 in.
Extended Height Deflated	14 in.
Finished Weight	11.0 lbs
Piston (Bottom) Mounting Bolt Dimensions Center to Center	None (Position Pin)
Piston Height	2.80 in.
Bead Plate Top Diameter	9 in.
Bead Plate Bottom Diameter	9.5 in.
Application	Holland 90557372, Holland 50857000,
Bottom Bead Plate Hardware Key	Bold or Stud 1/2-13
Top Bead Plate Hardware Key	Bold or Stud 1/2-13

HOW AIR SUSPENSION WORKS

In place of the spring is a bellow (usually made from rubber) filled with air. Under load, the bellow is compressed, causing a decrease in volume and an increase in pressure.

If more air is pumped in, the bellow is reinstated to its normal volume or, more crucially, its normal height. As an air spring, the increased pressure means increased stiffness, which is necessary for the added weight.

Meanwhile the vehicle’s ride height remains constant.

Air suspension systems now feature in numerous upmarket saloons, sports utility vehicles and station wagons. Some of them have air suspension only at the rear.

The advantage of this is even when the boot (or load bay) is fully laden, the vehicle stays level.

Supporting the air-filled bellows or air suspension are a number of components not present in the regular steel-sprung suspension system.

One of them is an electric or belt-driven compressor to supply air into the bellows when called for. What “instructs” the compressor is a level sensor.
