Place of Origin : Guangdong, China
Brand Name : VKNTECH
Certification : IATF16949/ISO9000
Packaging Details : CARTON/PALLET
Supply Ability : 2000000pcs/Year
MOQ : 20 Pieces
Price : $1.00 - $50.00/Pieces
Model Number : 1K8729
OE NO. : W01-358-8729
Type of Goods : Air Spring/Air bags/Air Ballons
Material : Imported Natrul Rubber and Plastic
Price condition : FOB China
Warranty : 12 Months
Type : by sea / by air / by truck
Car Model : For bus/truck&trailer
Sample : Available
Operation : Gas-filled
Brand : VKNTECH or customized
Service offered : OEM
Suspension system : Air Spring Suspension
Package : Standard packing or customized
Payment term : T/T&L/C
Port : Guangzhou

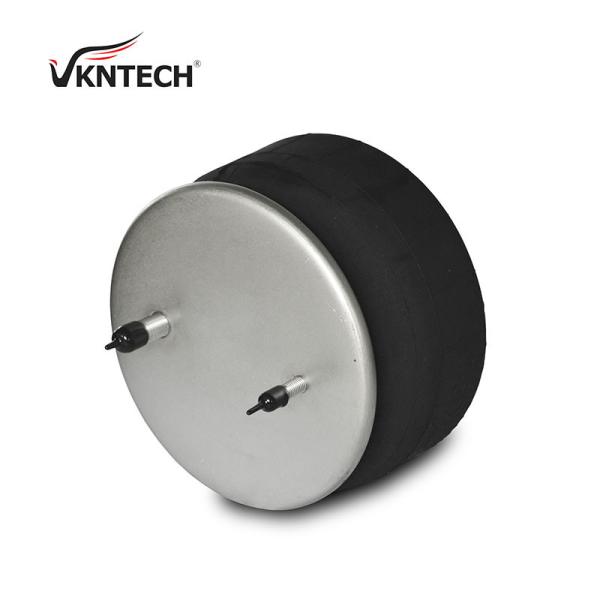

Over 3 Million Time Fatigue Test High Quality Air Suspension Bag For MERITOR 202796 Firestone W01-358-8729 Air Spring
OEM Numbers
Contitech | 10 10B-13 S 513 | ROR/MERITOR | 202796 |
Firestone | W01-358-8729 | ||
Goodyear | 1R13-130 |
Product Drawing
Specificaitons
ir Spring Air Fitting Size | Combination Stud/Air Inlet Stud Outside Thread is 3/4-16 ; Studs Inside Thread (Air Inlet) is 1/4 N.P.T. |
Air Spring Compressed Height | 4.6 in. |
Air Spring # of Lobes | 1 Solid Sleeve |
Air Spring Type | 1T - Reversible Sleeve |
Bead Plate (Top) & Deflated Bellows O.D. | 10.38 and 10.12 in. |
Bead Plate (Top) Mounting Bolts Dimension Center to Center | 5.50 in. |
Diameter | 10.12 in. |
Extended Height Deflated | 13.5 in. |
Finished Weight | 13.2 lbs |
Piston Height | 3.23 in. |
Bead Plate Top Diameter | 10.38 in. |
Bead Plate Bottom Diameter | 10.16 in. |
Application | Meritor 202796 (GY 1R13-130) |
Assembled Product Weight (lb) | 13.2 |
Bottom Bead Plate Hardware Key | Bold or Stud 1/2-13 |
Compressed Height (in.) | 4.7 |
Extended Height (in.) | 14 |
Firestone Bellows Number | 1T17BB-2 |
Piston Width (in.) | 10.16 |
Replaces Brand & Part # | Meritor 202796 (GY 1R13-130) |
Top Bead Plate Hardware Key | Bold or Stud 1/2-13 |
Top Plate Width (in.) | 10.38 |
